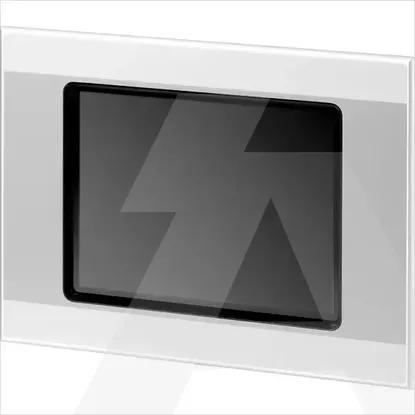

XV-363-10-C00-A00-1B
Code: 1884472
ManufacturerEaton
Catalog number197665
TypeXV-363-10-C00-A00-1B
CategoryGraphic panel
EAN code7640130099371
Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Built-in depth63mm
Suitable for safety functionsNo
Number of HW-interfaces RS-2321
Number of HW-interfaces industrial Ethernet2
Supporting protocol for KNXNo
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces parallel0
Operating temperature0 - 50°C
Number of HW-interfaces other2
Supporting protocol for CANYes
Number of HW-interfaces USB2
Supporting protocol for PROFIBUSYes
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPYes
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4851
Number of colours of the display65536
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
With alpha numeric keyboardYes
Width of the front345.2mm
Number of password levels200
Useful project memory/user memory512000kByte
Number of function buttons, programmable0
Height of the front260.2mm
Number of pixels, horizontal640
With message indicationYes
With printer outputNo
Process default value (input) possibleYes
With numeric keyboardYes
Number of online languages100
Number of pixels, vertical480
With SW interfacesNo
Process value representation (output) possibleYes
Additional software components, loadableYes
With recipesYes
With message system (incl. buffer and confirmation)Yes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Rail mounting possibleNo
Number of HW-interfaces Wireless0
Wall mounting/direct mountingNo
Supporting protocol for EtherNet/IPYes
Number of grey-scales/blue-scales of display0
Supporting protocol for Foundation FieldbusNo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Number of buttons with LED0
Type of displayTFT
Radio standard GSMNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Number of system buttons1
IO link masterNo
Radio standard Wi-Fi 802.11No
Radio standard GPRSNo
Degree of protection (NEMA), front side12
Certified for UL hazardous location class INo
Supporting protocol for EtherCATYes
Touch technologyInfrared touch
Radio standard UMTSNo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Power consumption20.5W
Screen diagonal10.4inch
Voltage type of supply voltageDC
With colour displayYes
Degree of protection (IP), front sideIP65
Supply voltage AC 50 Hz0 - 0V
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
