Details
- •Cable carrying systems

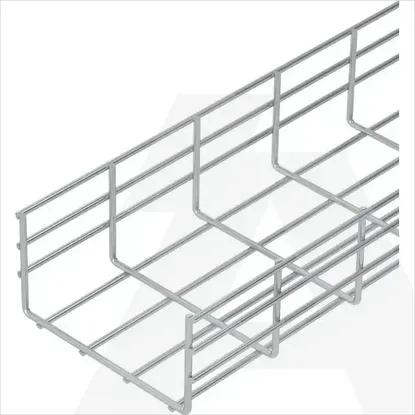

- •Mesh cable tray
- •1 M
- •OBO
Technical specifications
ColourOther
RAL-number-
Material qualityOther
Weight2.96kg/m
Surface protectionGalvanic/electrolytic zinc plated
ModelWithout connector
Width200mm
Useful cross section17500mm²
Height105mm
Type of connectorScrewed
Wire diameter6mm
Length3000mm
Operating temperature- - -°C
Integrated partitionNone
MaterialSteel
Profile shapeU-shape
Screwless connectorNo
Stainless steel, pickledNo
Suitable for circuit integrityNo
Wide span modelNo
Working length-mm
Safe working load according to IEC 61537 with support spacing 2.0 m1150N/m
Diameter longitudinal wire6mm
Load test type according to IEC 61537Type II
Safe working load according to IEC 61537 with support spacing 0.5 m-N/m
Safe working load according to IEC 61537 with support spacing 6.0 m-N/m
Safe working load according to IEC 61537 with support spacing 1.5 m1750N/m
Safe working load according to IEC 61537 with support spacing 1.0 m3100N/m
Safe working load according to IEC 61537 with support spacing 9.0 m-N/m
Safe working load according to IEC 61537 with support spacing 2.5 m790N/m
Safe working load according to IEC 61537 with support spacing 11.0 m-N/m
Safe working load according to IEC 61537 with support spacing 8.0 m-N/m
Safe working load according to IEC 61537 with support spacing 7.0 m-N/m
Diameter transverse wire6mm
Safe working load according to IEC 61537 with support spacing 3.0 m600N/m
Possible support spacing1 - 4m
Safe working load according to IEC 61537 with support spacing 12.0 m-N/m
Safe working load according to IEC 61537 with support spacing 10.0 m-N/m
Safe working load according to IEC 61537 with support spacing 4.0 m400N/m
Safe working load according to IEC 61537 with support spacing 5.0 m-N/m
