Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Nominal current4A
Suitable for front mountingNo
Depth63mm
Height70mm
Width17.5mm
Time range0.05 - 360000s
With semiconductor outputNo
Clock function, starting with pause, variableNo
Function floating contact on de-energizationNo
Remote operation possibleNo
Function flashing, starting with pause, fixed timeYes
Type of electric connectionScrew connection
Function floating contact on energizationNo
With plug-in socketNo
Function pulse shapingNo
Clock function, starting with pulse, variableNo
Function delay on de-energizationNo
Function star-deltaNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Function flashing, starting with pulse, fixed timeYes
Suitable as remote controlNo
Function delay-on energizationNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at DC24 - 48V
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally open contact0
Voltage type for actuatingAC/DC
Number of outputs, delayed, normally closed contact0
Suitable for DIN rail (top hat rail) mountingYes
Pluggable on auxiliary contact blockNo
Number of outputs, undelayed, change-over contact1
Outputs, reversible delayed/undelayedNo
Number of outputs, delayed, change-over contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

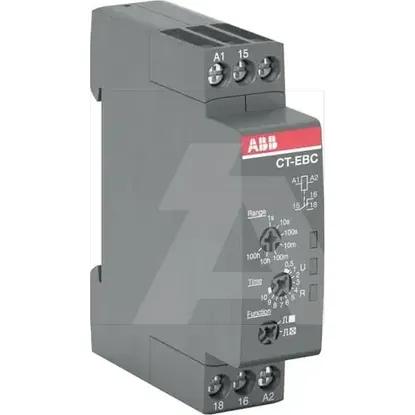

1SVR508150R0000 | CT-EBC.12
