Details
- •Low-voltage industrial components
- •Fieldbus, decentr. periphery - communication module
- •1 KOM
- •ABB
Technical specifications
Height22mm
Number of HW-interfaces serial TTY2
Suitable for safety functionsNo
Number of HW-interfaces parallel2
Number of HW-interfaces RS-4222
Number of HW-interfaces RS-4852
Number of HW-interfaces industrial Ethernet2
Type of accessory/spare partCommunication and measuring function
Width50mm
Number of HW-interfaces USB2
Depth52mm
Supporting protocol for LONNo
Number of HW-interfaces RS-2322
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other2
Supporting protocol for ModbusNo
Supporting protocol for other bus systemsNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Explosion safety category for dustNone
Supporting protocol for Data-HighwayNo
Explosion safety category for gasNone
Front built-in possibleNo
Appendant operation agent (Ex ib)No
Rail mounting possibleNo
Supporting protocol for SERCOSNo
Rack-assembly possibleNo
Number of HW-interfaces Wireless2
Radio standard Wi-Fi 802.11No
Supporting protocol for INTERBUS-SafetyNo
With potential separationNo
Fieldbus connection over separate bus coupler possibleYes
Number of interfaces PROFINET2
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
Wall mounting/direct mountingNo
Radio standard BluetoothNo
System accessoryYes
IO link masterNo
Performance level according to EN ISO 13849-1None
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for SafetyBUS pNo
Supply voltage AC 50 Hz- - -V
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Radio standard UMTSNo
Radio standard LTENo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Supply voltage AC 60 Hz- - -V
Certified for UL hazardous location division 2No
Radio standard GSMNo
Certified for UL hazardous location division 1No
Number of HW-interfaces CAN2
Certified for UL hazardous location class INo
Radio standard GPRSNo
SIL according to IEC 61508None
Radio standard eGPRSNo
Supporting protocol for EtherCATNo
Supply voltage DC- - -V
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group A (acetylene)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

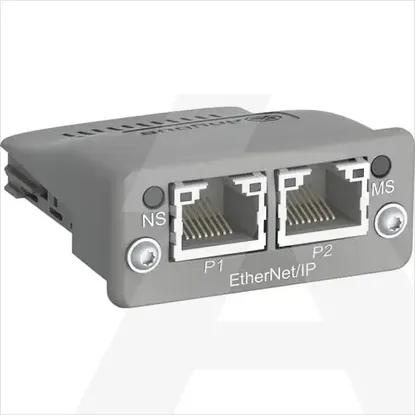

1SFA899300R1006 | AB-ETHERNET-IP-2
