Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - communication module
- •1 KOM
- •ABB
Technical specifications
Width50mm
Height22.25mm
Depth54.8mm
Suitable for safety functionsNo
Number of HW-interfaces RS-4222
Number of HW-interfaces RS-4852
Number of HW-interfaces serial TTY2
Supporting protocol for LONNo
Number of HW-interfaces RS-2322
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces other2
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel2
Number of HW-interfaces USB2
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Rail mounting possibleNo
With potential separationNo
Appendant operation agent (Ex ib)No
System accessoryYes
Fieldbus connection over separate bus coupler possibleYes
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Explosion safety category for gasNone
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP20
Radio standard Wi-Fi 802.11No
Wall mounting/direct mountingNo
Number of HW-interfaces Wireless2
Number of interfaces PROFINET2
Radio standard BluetoothNo
Front built-in possibleNo
Rack-assembly possibleNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
IO link masterNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Performance level according to EN ISO 13849-1None
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Radio standard UMTSNo
Supply voltage AC 60 Hz- - -V
Radio standard GPRSNo
Supply voltage AC 50 Hz- - -V
Radio standard GSMNo
Supporting protocol for SafetyBUS pNo
Supply voltage DC- - -V
Radio standard eGPRSNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location class INo
Radio standard LTENo
Certified for UL hazardous location division 1No
Supporting protocol for EtherCATYes
Certified for UL hazardous location class IIINo
Number of HW-interfaces CAN2
SIL according to IEC 61508None
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

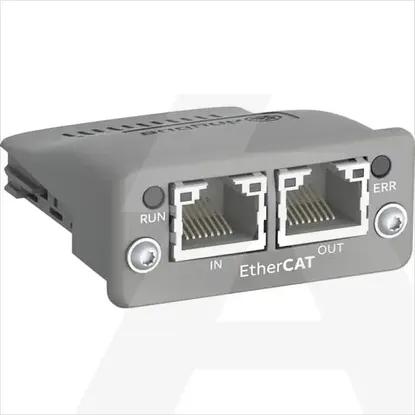

1SFA899300R1012 | AB-ETHERCAT-IP-2
