Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
With control elementYes
Height239mm
Depth142mm
Width105mm
Number of digital outputs0
Number of digital inputs5
Number of HW-interfaces RS-2320
Number of analogue inputs1
Number of HW-interfaces USB0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Number of HW-interfaces RS-4850
Number of analogue outputs0
With optical interfaceNo
Number of HW-interfaces other1
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for other bus systemsNo
Supporting protocol for CANNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Degree of protection (IP)IP20
Type of converterU converter
Application in industrial area permittedYes
Mains voltage200 - 240V
With PC connectionYes
Integrated breaking resistanceNo
Number of phases input1
Application in domestic- and commercial area permittedNo
Max. output frequency500Hz
Number of phases output3
Max. output at linear load at rated output voltage2.2kW
Supporting protocol for INTERBUS-SafetyNo
4-quadrant operation possibleNo
Max. output at quadratic load at rated output voltage2.2kW
Max. output voltage240V
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Degree of protection (NEMA)Other
Supporting protocol for BACnetNo
Relative symmetric net voltage tolerance10%
Nominal output current I2N9.8A
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IONo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

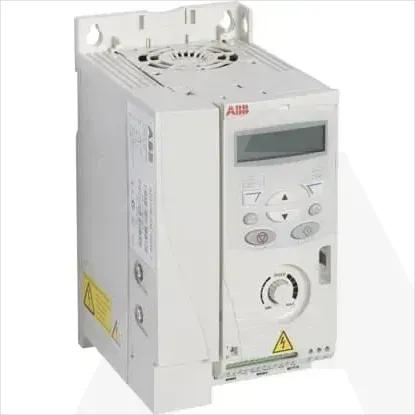

ACS150-01E-09A8-2 | ACS150-01E-09A8-2
