Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Width70mm
Depth142mm
With control elementYes
Height239mm
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
With optical interfaceNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB0
Number of analogue inputs1
Supporting protocol for PROFIBUSNo
Number of HW-interfaces RS-4850
Number of digital outputs0
Number of HW-interfaces parallel0
Number of HW-interfaces other1
Number of analogue outputs0
Number of digital inputs5
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for ModbusNo
Mains frequency50/60 Hz
Supporting protocol for SERCOSNo
Mains voltage380 - 480V
With PC connectionYes
4-quadrant operation possibleNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Type of converterU converter
Max. output at linear load at rated output voltage0.55kW
Supporting protocol for PROFINET CBANo
Number of phases output3
Relative symmetric net frequency tolerance5%
Number of phases input3
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Application in industrial area permittedYes
Application in domestic- and commercial area permittedNo
Max. output at quadratic load at rated output voltage0.55kW
Integrated breaking resistanceNo
Max. output frequency500Hz
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Nominal output current I2N1.9A
Degree of protection (NEMA)Other
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

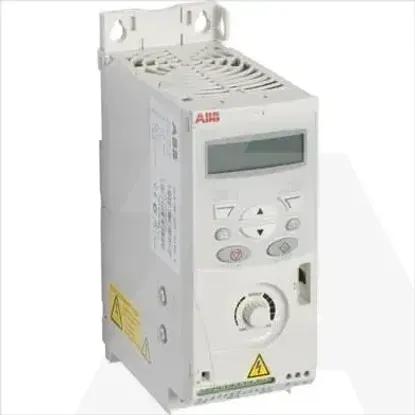

ACS150-03E-01A9-4 | ACS150-03E-01A9-4
