Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Width73mm
Height223mm
Number of digital outputs3
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Number of digital inputs6
Number of analogue outputs2
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Depth208mm
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
Supporting protocol for ASINo
Number of HW-interfaces USB1
Number of HW-interfaces other2
Supporting protocol for TCP/IPYes
Number of HW-interfaces serial TTY0
With optical interfaceNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for CANYes
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
Mains voltage380 - 480V
With PC connectionYes
Degree of protection (IP)IP20
4-quadrant operation possibleNo
Mains frequency50/60 Hz
Number of phases output3
Application in industrial area permittedYes
Number of phases input3
Integrated breaking resistanceNo
Relative symmetric net voltage tolerance10%
Type of converterU converter
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage4kW
Application in domestic- and commercial area permittedYes
Supporting protocol for Foundation FieldbusNo
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Degree of protection (NEMA)Other
Supporting protocol for PROFINET CBANo
Max. output voltage480V
With control elementYes
Supporting protocol for ModbusYes
Max. output at linear load at rated output voltage4kW
Nominal output current I2N8.9A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

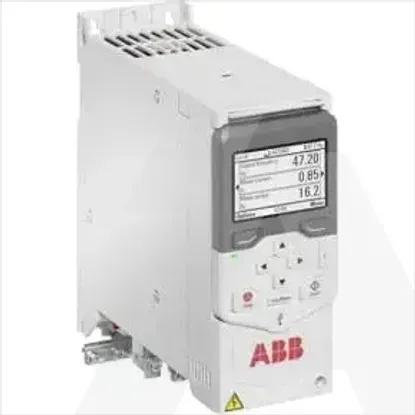

ACS480-04-09A5-4 | ACS480-04-09A5-4
