Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Number of HW-interfaces industrial Ethernet0
Number of digital inputs6
Number of HW-interfaces RS-4220
With control elementNo
Width125mm
Depth229mm
Number of HW-interfaces RS-2320
Number of digital outputs3
Number of analogue outputs2
Supporting protocol for LONNo
Number of analogue inputs2
Supporting protocol for ASINo
Number of HW-interfaces other2
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
With optical interfaceNo
Number of HW-interfaces parallel2
Height473mm
Supporting protocol for SUCONETNo
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Supporting protocol for CANYes
With PC connectionNo
Mains frequency50/60 Hz
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Type of converterU converter
Degree of protection (IP)IP21
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for ModbusYes
Supporting protocol for SERCOSNo
Mains voltage380 - 480V
Supporting protocol for DeviceNetYes
Number of interfaces PROFINET0
Supporting protocol for KNXNo
4-quadrant operation possibleNo
Max. output frequency500Hz
Integrated breaking resistanceNo
Application in industrial area permittedYes
Number of phases input3
Max. output at linear load at rated output voltage11kW
Application in domestic- and commercial area permittedYes
Number of phases output3
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNet SafetyYes
Nominal output current I2N25A
Supporting protocol for SafetyBUS pNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for BACnetNo
Degree of protection (NEMA)1
Supporting protocol for PROFINET IOYes
Supporting protocol for Foundation FieldbusNo
Max. output voltage480V
Max. output at quadratic load at rated output voltage11kW
Recommended products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

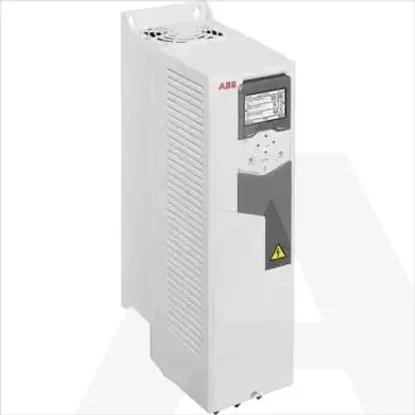

ACS580-01-026A-4 +J400 | ACS580-01-026A-4 +J400
