Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
With control elementYes
Number of HW-interfaces industrial Ethernet0
Number of digital inputs6
Number of analogue outputs2
Number of HW-interfaces USB1
Number of digital outputs3
Supporting protocol for LONNo
Height490mm
Number of HW-interfaces serial TTY0
Number of analogue inputs2
Number of HW-interfaces RS-4851
Width203mm
Number of HW-interfaces RS-2320
Depth229mm
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Supporting protocol for Data-HighwayNo
With PC connectionYes
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Number of HW-interfaces parallel2
Number of HW-interfaces other2
Degree of protection (IP)IP21
With optical interfaceNo
Mains voltage380 - 480V
Supporting protocol for DeviceNetYes
Supporting protocol for SERCOSNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Number of phases input3
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Type of converterU converter
Number of phases output3
4-quadrant operation possibleNo
Max. output at quadratic load at rated output voltage22kW
Max. output frequency500Hz
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Integrated breaking resistanceNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Max. output at linear load at rated output voltage22kW
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFIsafeNo
Nominal output current I2N45A
Supporting protocol for BACnetNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyYes
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Degree of protection (NEMA)1
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

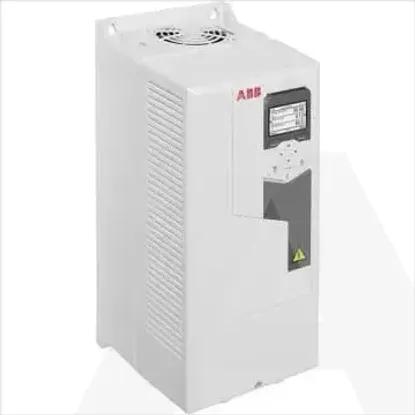

ACS580-01-046A-4 +J400 | ACS580-01-046A-4 +J400
