Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Width203mm
Depth295mm
Height732mm
Number of analogue inputs2
Number of digital outputs3
Number of HW-interfaces industrial Ethernet0
Number of digital inputs6
Supporting protocol for LONNo
Number of analogue outputs2
Number of HW-interfaces other2
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Number of HW-interfaces parallel2
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSYes
Supporting protocol for Data-HighwayNo
Supporting protocol for CANYes
Number of HW-interfaces serial TTY0
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-2320
Supporting protocol for KNXNo
With optical interfaceNo
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
4-quadrant operation possibleNo
With PC connectionNo
Degree of protection (IP)IP21
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Supporting protocol for SUCONETNo
Mains voltage380 - 480V
Supporting protocol for DeviceNetYes
Number of interfaces PROFINET0
Number of phases input3
Integrated breaking resistanceNo
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance5%
Supporting protocol for DeviceNet SafetyYes
Type of converterU converter
Supporting protocol for EtherNet/IPYes
Number of phases output3
Application in industrial area permittedYes
Max. output at quadratic load at rated output voltage45kW
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFINET CBANo
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Supporting protocol for Foundation FieldbusNo
Degree of protection (NEMA)1
With control elementYes
Max. output at linear load at rated output voltage45kW
Nominal output current I2N88A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

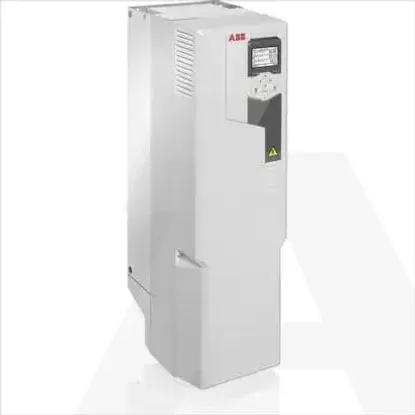

ACS580-01-088A-4 +J400 | ACS580-01-088A-4 +J400
