Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Nominal output current I2N145A
Relative symmetric net voltage tolerance10%
Max. output voltage480V
Mains voltage380 - 480V
Number of digital outputs3
Max. output at linear load at rated output voltage75kW
Number of phases output3
Mains frequency50/60 Hz
Max. output frequency500Hz
Number of phases input3
With control elementYes
Application in industrial area permittedYes
Max. output at quadratic load at rated output voltage75kW
Number of digital inputs6
Number of analogue inputs2
Number of analogue outputs2
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFIBUSYes
Application in domestic- and commercial area permittedYes
Supporting protocol for SERCOSNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for CANYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for LONNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
Supporting protocol for BACnetNo
Number of HW-interfaces industrial Ethernet0
Integrated breaking resistanceNo
Number of HW-interfaces RS-4851
Number of HW-interfaces parallel2
Number of HW-interfaces serial TTY0
With optical interfaceNo
Number of interfaces PROFINET0
Width252mm
Degree of protection (NEMA)1
Supporting protocol for SafetyBUS pNo
Type of converterU converter
Number of HW-interfaces RS-4220
With PC connectionYes
Number of HW-interfaces RS-2320
Number of HW-interfaces other2
4-quadrant operation possibleNo
Number of HW-interfaces USB1
Degree of protection (IP)IP55
Height727mm
Depth369mm
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

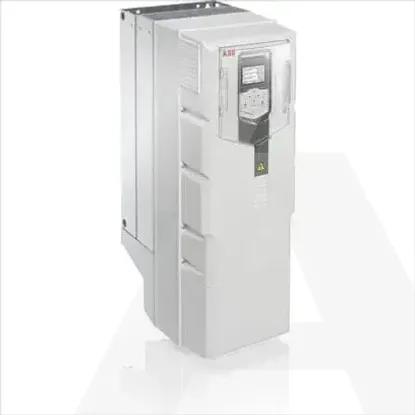

ACS580-01-145A-4+B056 +J400 | ACS580-01-145A-4+B
