Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Max. output frequency500Hz
Max. output voltage480V
Max. output at linear load at rated output voltage160kW
Number of phases output3
Relative symmetric net voltage tolerance10%
Mains frequency50/60 Hz
Number of phases input3
Number of analogue outputs2
Number of digital outputs3
Nominal output current I2N293A
Application in industrial area permittedYes
Relative symmetric net frequency tolerance5%
Number of digital inputs6
With control elementYes
Number of analogue inputs2
Mains voltage380 - 480V
Max. output at quadratic load at rated output voltage160kW
Supporting protocol for LONNo
Supporting protocol for SERCOSNo
Application in domestic- and commercial area permittedYes
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for ModbusYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUSNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for TCP/IPYes
Supporting protocol for CANYes
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for KNXNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
With optical interfaceNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2320
Supporting protocol for SafetyBUS pNo
Supporting protocol for other bus systemsYes
With PC connectionYes
Number of HW-interfaces other2
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Supporting protocol for BACnetNo
Number of interfaces PROFINET0
Width300mm
Integrated breaking resistanceNo
Type of converterU converter
Height965mm
Degree of protection (IP)IP55
Degree of protection (NEMA)1
Number of HW-interfaces parallel2
4-quadrant operation possibleNo
Depth393mm
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

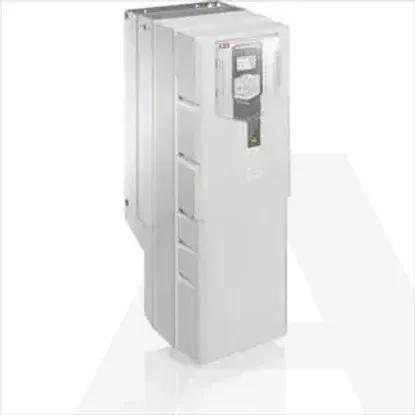

ACS580-01-293A-4+B056 +J400 | ACS580-01-293A-4+B
