Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Depth418mm
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Number of digital inputs6
Number of digital outputs3
Number of analogue inputs2
Height955mm
Number of HW-interfaces RS-2320
With control elementYes
Supporting protocol for LONNo
Width380mm
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for ModbusYes
Supporting protocol for ASINo
Supporting protocol for CANYes
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for DeviceNetYes
Mains voltage380 - 480V
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
With PC connectionYes
Degree of protection (IP)IP55
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces parallel2
4-quadrant operation possibleNo
Mains frequency50/60 Hz
Type of converterU converter
Number of HW-interfaces other2
Number of phases output3
Number of phases input3
Number of interfaces PROFINET0
Integrated breaking resistanceNo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Nominal output current I2N430A
Degree of protection (NEMA)1
Supporting protocol for DeviceNet SafetyYes
Max. output at quadratic load at rated output voltage250kW
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Max. output frequency500Hz
Supporting protocol for PROFINET IOYes
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage250kW
Max. output voltage480V
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

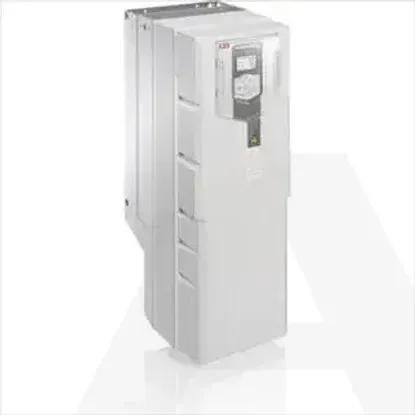

ACS580-01-430A-4+B056 +J400 | ACS580-01-430A-4+B
