Details
- •Data and telecommunication

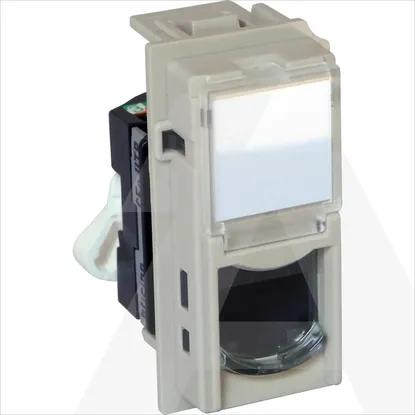

- •Data communication connection box copper (twisted pair)
- •10 KOM
- •LEGRAND
Technical specifications
Suitable for number of connectors1
Shielded busesNo
Outlet directionStraight
Mounting method shielding connectionNone
Connection typeInsulation displacement connector
ColourOther
Separate strain reliefNo
Duct installationNo
RAL-number1017
Assembly arrangementBasic element with central cover plate
Type of fasteningEngage (snap)
Category5E
Surface mountingNo
With label spaceYes
With dust coverYes
Separate earthing connectionNo
Type of connectorRJ45 8(8)
Floor box/sub-floor mountedNo
Width of device22.5mm
Depth of device34mm
Degree of protection (IP)IP21
Height of device45mm
Flush-mounted installationYes
Number of modules (module system)1
Colour codingYes
With buses/couplingsYes
