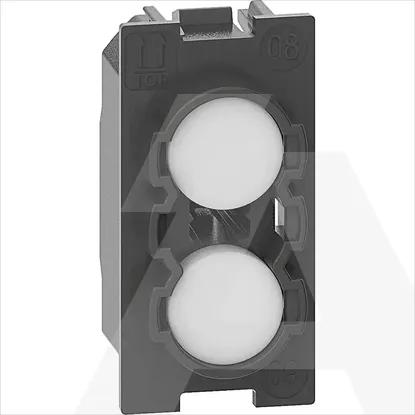

KM4362 | Lnow Lamp+izmj SKL 1M 230V PIJ
Code: 1889386
ManufacturerLegrand
Catalog numberKM4362
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8005543653593
Details
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •LEGRAND
Technical specifications
Width22mm
Protection classNone
Conductor cross section1.5mm²
Colour rendering index CRI80-89
Type of control gearLED operating device voltage-controlled
Height/depth375mm
With movement sensorNo
Suitable for wall mountingYes
Number of poles2
Connection typeScrewed terminal
Type of gridWhite
Suitable for light line configurationNo
Light outletDirect
Lamp holderOther
Suitable for suspended mountingNo
Suitable for emergency lightingNo
Material housingPlastic
With light sensorNo
Length86mm
Built-in width22mm
Light sharingSymmetric/asymmetric
Material coverPlastic, opal
Lamp typeLED not exchangeable
Voltage typeAC
Rated luminous flux according to IEC 62722-2-1246lm
Suitable for workplace according to EN 12464-1No
Colour temperature4000 - 5500K
Nominal current15 - 25mA
Beam angleOpen beam/diffuse
With control gearNo
With light sourceYes
With air slotsYes
Suitable for built-in mountingYes
Covering of the luminaire with thermally insulating material possibleNo
Suitable for number of lamps1
Max. system power0.3W
Luminaire with limited surface temperature, sign "D“No
Suitable for surface mountingYes
Degree of protection (IP)IP41
Colour of lightWhite
Emergency power supply integratedNo
Dimming 0-10 VNo
Dimming 1-10 VNo
Filament test according to IEC 60695-2-11None
Type of wiringEnding
Dimming DALINo
Dimming DMXNo
Rated ambient temperature according to IEC62722-2-1-5 - 35°C
IFTTT support availableNo
Dimming manufacturer's proprietary systemNo
Dimming programmableYes
Dimming Touch and DimYes
Dimming phase cut-onNo
Dimming phase cut-offNo
Dimming RFNo
Built-in height/depth86mm
Dimming mains voltage modulationNo
Dimming DSINo
Dimming ZigbeeNo
No dim functionNo
Dimming Sine Wave ReductionNo
Compatible with Amazon AlexaNo
Light distributorDiffuser lens/optic/panel
Dimming potentiometer (integrated)No
Compatible with Google AssistantNo
Suitable for ceiling mountingNo
Operation by BluetoothNo
Dimming LineSwitchNo
Compatible with Apple HomeKitNo
Dimming with push-buttonYes
Colour housingBlack
Suitable for lamp power0.1 - 0.2W
Nominal voltage230 - 250V
