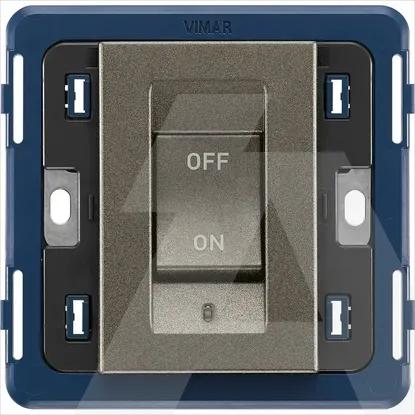

19017.M | 2P 32A 1-way switch Metal
Code: 1890804
Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
Wiring system2-pole switch
Method of operationRocker/button
Number of modules (module system)2
With mounting plateNo
Material qualityThermoplastic
MaterialPlastic
Assembly arrangementOther
Mounting methodFlush mounted (plaster)
Surface protectionLacquered
Number of rockers1
Push button switchYes
Label space/information surfaceYes
Nominal voltage250V
Feedback-signal contactNo
Type of fasteningEngage (snap)
RAL-number (similar)9007
Surface finishingMatt
Washing machine switchYes
IlluminationOptional
Function lightingControl and orientation
Rated current32.00A
Suitable for degree of protection (IP)IP40
Width of device84.30mm
Connection typeScrewed terminal
Type of lightingLED exchangeable
ColourAluminium
Halogen freeYes
Height of device82.50mm
Built-in depth22.50mm
Depth of device32.20mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
19017.M | 2P 32A 1-way switch Metal
Details
- Domestic switching devices
- Installation switch
- 1 KOM
- VIMAR
DetailsTechnical specifications
Technical specifications
Wiring system
2-pole switch
Method of operation
Rocker/button
Number of modules (module system)
2
With mounting plate
Material quality
Thermoplastic
Material
Plastic
Assembly arrangement
Other
Mounting method
Flush mounted (plaster)
Surface protection
Lacquered
Number of rockers
1
Push button switch
Label space/information surface
Yes
Nominal voltage
250V
Feedback-signal contact
Type of fastening
Engage (snap)
RAL-number (similar)
9007
Surface finishing
Matt
Washing machine switch
Illumination
Optional
Function lighting
Control and orientation
Rated current
32.00A
Suitable for degree of protection (IP)
IP40
Width of device
84.30mm
Connection type
Screwed terminal
Type of lighting
LED exchangeable
Colour
Aluminium
Halogen free
Height of device
82.50mm
Built-in depth
22.50mm
Depth of device
32.20mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
