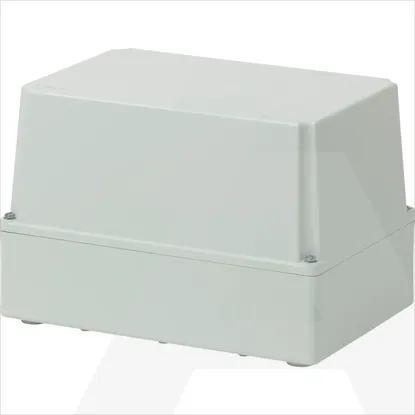

V55218 | IP55 junction box 220x150x150mm
Code: 1892201
Details
- •Connection devices
- •Box/housing for surface mounting on the wall/ceiling
- •1 KOM
- •VIMAR
Technical specifications
Equipped withNone
Mounting in the soilNo
Max. conductor cross section0mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
For tube diameter20/25 mm
Length220.00mm
Inlet from the rearNo
Mounting under waterNo
Depth60.00mm
Width220.00mm
Diameter0mm
Type of housing feed-throughNone
Halogen freeNo
Surface protectionUntreated
ColourGrey
Cover modelBlind cover
MaterialPlastic
Degree of protection (IP)IP55
Transparent coverNo
CastableNo
Cover attachmentScrewed
SealableNo
WeatherproofYes
Rated insulation voltage Ui450V
Operating temperature0 - 60°C
Number of inlets0
TackableNo
With casting compoundNo
With screeningNo
Circuit integrityNone
Explosion-tested versionNo
For Ex-zone gasNone
For Ex-Zone dustNone
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
