Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu400A
With integrated under voltage releaseNo
Number of poles3
Overload release current setting280.0 - 400A
Position of connection for main current circuitFront side
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP)IP20
Number of auxiliary contacts as change-over contact0
Rated voltage220 - 690V
Type of control elementToggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release2000 - 4000A
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
Complete device with protection unitYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

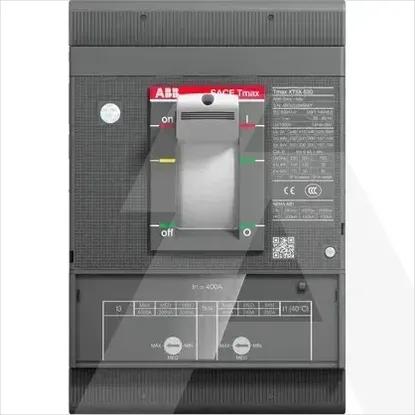

1SDA100345R1 | XT5N 400 TMA 400-4000 3p F F
