Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting441.0 - 630A
Rated permanent current Iu630A
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated voltage220 - 690V
Number of auxiliary contacts as change-over contact0
Type of control elementToggle
Position of connection for main current circuitFront side
Motor drive integratedNo
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release3150 - 6300A
Adjustment range short-term delayed short-circuit release- - -A
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
With switched-off indicatorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

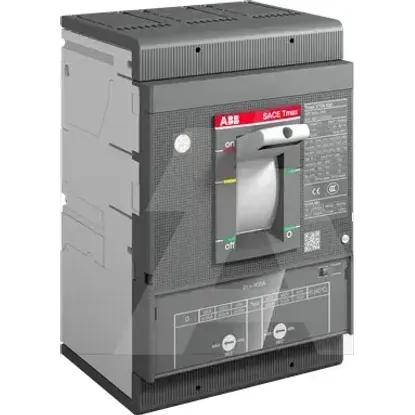

1SDA100347R1 | XT5N 630 TMA 630-6300 3p F F
