Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of poles4
Number of auxiliary contacts as change-over contact0
Overload release current setting252.0 - 630A
Rated permanent current Iu630A
Suitable for DIN rail (top hat rail) mountingNo
Rated voltage220 - 690V
Motor drive integratedNo
Integrated earth fault protectionNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
Complete device with protection unitYes
Position of connection for main current circuitFront side
Adjustment range undelayed short-circuit release630 - 6300A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
With switched-off indicatorNo
DIN rail (top hat rail) mounting optionalYes
Type of control elementToggle
Adjustment range short-term delayed short-circuit release630 - 6300A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

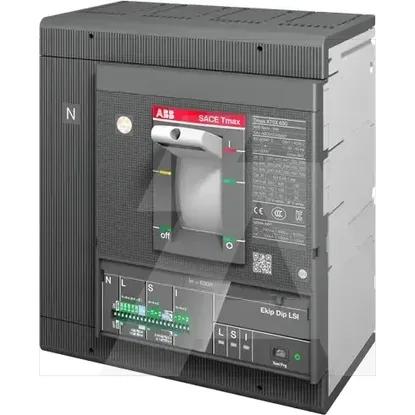

1SDA100397R1 | XT5N 630 Ekip Dip LS/I In=630 4p F F
