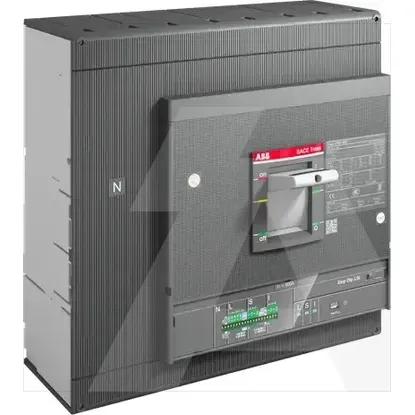

1SDA100732R1 | XT6N 800 Ekip Dip LS/I In=800 4p F F
Code: 1893585
ManufacturerABB
Catalog number1SDA100732R1
TypeXT6N 800 Ekip Dip LS/I In=800 4p F F
Category-
EAN code8056221003575
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
Overload release current setting320.0 - 800A
Number of auxiliary contacts as change-over contact0
Type of control elementToggle
Motor drive integratedNo
Position of connection for main current circuitFront side
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release800 - 8000A
Adjustment range undelayed short-circuit release800 - 8000A
With integrated under voltage releaseNo
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
Rated permanent current Iu800A
Number of poles4
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
