Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Type of control elementToggle
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Overload release current setting560.0 - 800A
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Number of poles4
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu800A
Rated voltage220 - 690V
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalYes
Adjustment range undelayed short-circuit release4000 - 8000A
Adjustment range short-term delayed short-circuit release- - -A
With switched-off indicatorNo
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Motor drive optionalYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

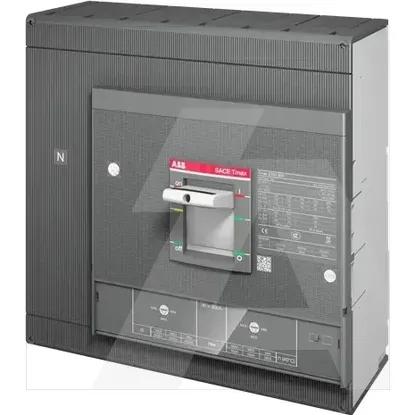

1SDA100753R1 | XT6S 800 TMA 800-8000 4p F F InN=100%In
