Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated voltage220 - 690V
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitFront side
Number of auxiliary contacts as normally open contact0
Overload release current setting640.0 - 1600A
With integrated under voltage releaseNo
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release1600 - 16000A
Adjustment range undelayed short-circuit release1600 - 16000A
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalYes
Type of control elementToggle
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Rated permanent current Iu1600A
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

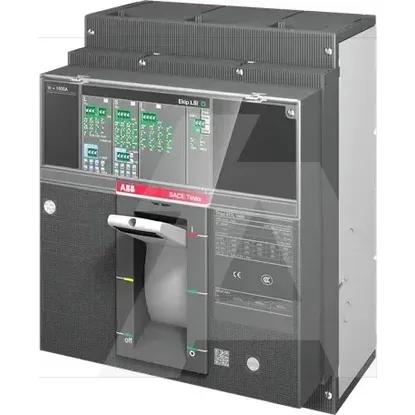

1SDA100829R1 | XT7S 1600 Ekip Dip LS/I In=1600A 3p F F
