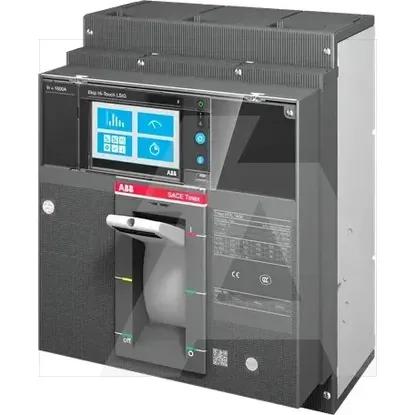

1SDA100841R1 | XT7S 1600 Ekip Touch LSI In=1600A 3p F F
Code: 1893694
ManufacturerABB
Catalog number1SDA100841R1
TypeXT7S 1600 Ekip Touch LSI In=1600A 3p F F
Category-
EAN code8056221008952
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Overload release current setting640.0 - 1600A
Integrated earth fault protectionNo
Type of control elementToggle
Number of auxiliary contacts as normally closed contact0
Adjustment range short-term delayed short-circuit release960.0 - 16000A
With switched-off indicatorNo
Adjustment range undelayed short-circuit release2400.0 - 24000A
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Motor drive integratedNo
Degree of protection (IP)IP20
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitFront side
Complete device with protection unitYes
Rated permanent current Iu1600A
Number of poles3
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
