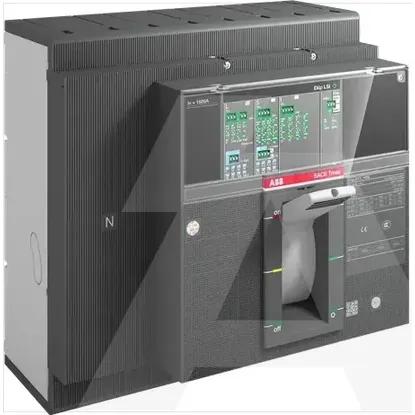

1SDA101117R1 | XT7S 1600 Ekip Dip LS/I In=1600A 4p F F
Code: 1893952
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1600A
Adjustment range undelayed short-circuit release1600 - 16000A
Type of electrical connection of main circuitBolt connection
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Overload release current setting640.0 - 1600A
DIN rail (top hat rail) mounting optionalYes
Type of control elementToggle
With integrated under voltage releaseNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Complete device with protection unitYes
Position of connection for main current circuitFront side
Motor drive integratedNo
Degree of protection (IP)IP20
With switched-off indicatorNo
Device constructionBuilt-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Rated voltage220 - 690V
Number of auxiliary contacts as change-over contact0
Number of poles4
Motor drive optionalYes
Adjustment range short-term delayed short-circuit release1600 - 16000A
