Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu800A
Position of connection for main current circuitFront side
Type of control elementToggle
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Rated voltage220 - 690V
Degree of protection (IP)IP20
Suitable for DIN rail (top hat rail) mountingNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range undelayed short-circuit release1200.0 - 12000A
Integrated earth fault protectionYes
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release480.0 - 8000A
With switched-off indicatorNo
Overload release current setting320.0 - 800A
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

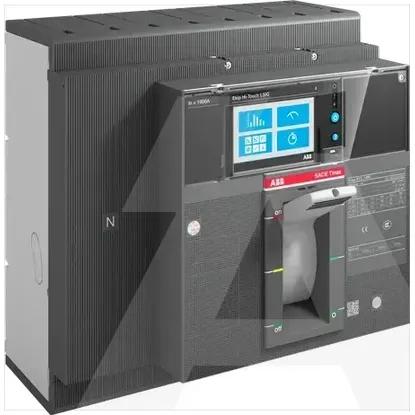

1SDA101146R1 | XT7S 800 Ekip Hi-Touch LSIG In800A 4p FF
