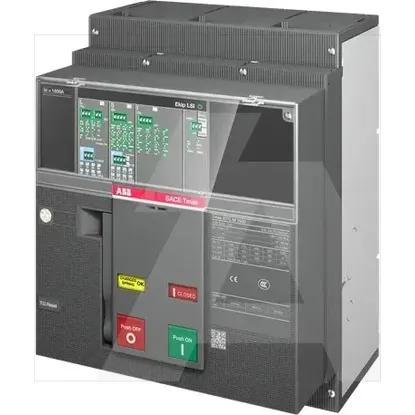

1SDA101367R1 | XT7S M 1000 Ekip Dip LS/I In1000A 3p F F
Code: 1894184
ManufacturerABB
Catalog number1SDA101367R1
TypeXT7S M 1000 Ekip Dip LS/I In1000A 3p F F
Category-
EAN code8056221011853
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Type of control elementToggle
Overload release current setting400.0 - 1000A
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Adjustment range short-term delayed short-circuit release1000 - 10000A
Integrated earth fault protectionNo
Adjustment range undelayed short-circuit release1000 - 10000A
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Rated permanent current Iu1000A
Number of poles3
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
