Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementToggle
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated short-time withstand current lcw-kA
Switching power at 400 V-kW
Number of switches-
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-21, 400 V1600A
Rated permanent current Iu1600A
Version as main switchYes
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Rated operating voltage0 - 690V
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Number of poles3
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP20
Colour control elementWhite
Suitable for floor mountingNo
Type of electrical connection of main circuitBolt connection
Suitable for distribution board installationYes
Voltage release optionalYes
Degree of protection (NEMA)1
InterlockableYes
Number of auxiliary contacts as normally open contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

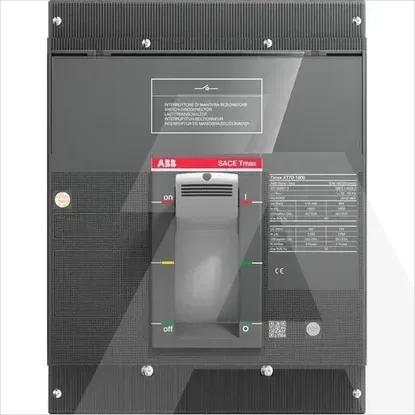

1SDA101908R1 | XT7D 1600 3p F F
