Details
- •Relays
- •Switching relay
- •10 KOM
- •ABB
Technical specifications
Width35mm
Nominal current10A
Height54.4mm
Depth35mm
Max. starting current-A
With detachable clampsNo
With forced-guided contactsNo
Drive, polarizationPolarized
Rated control supply voltage Us at DC125 - 125V
Drive, switching attitudeMono stable
Complete with socketNo
Operating voltage at AC 50 Hz250 - 250V
Rated control supply voltage Us at AC 60HZ- - -V
Rated control supply voltage Us at AC 50HZ- - -V
Voltage type (operating voltage)AC/DC
Type of switch contactSingle contact
Type of electric connectionPlug-in connection
Operating voltage at DC- - -V
With LED indicationNo
Voltage type for actuatingDC
Material of contact surfaceOther
Number of contacts as normally closed contact0
Number of contacts as change-over contact3
Material contactSilver nickel (AgNi)
Number of contacts as normally open contact0
Degree of protection (IP)IP40
Operating voltage at AC 60 Hz250 - 250V
Relay technology category according to IEC 61810-7RT I
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

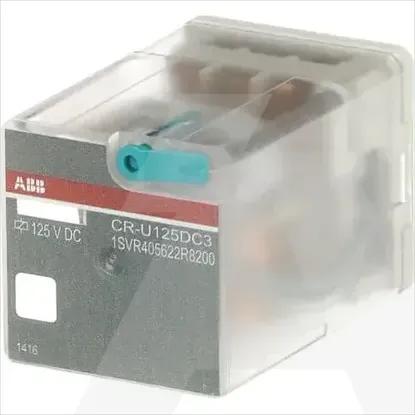

1SVR405622R8200 | CR-U125DC3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Switching relay
- 10 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
35mm
Nominal current
10A
Height
54.4mm
Depth
35mm
Max. starting current
-A
With detachable clamps
With forced-guided contacts
Drive, polarization
Polarized
Rated control supply voltage Us at DC
125 .. 125V
Drive, switching attitude
Mono stable
Complete with socket
Operating voltage at AC 50 Hz
250 .. 250V
Rated control supply voltage Us at AC 60HZ
- .. -V
Rated control supply voltage Us at AC 50HZ
- .. -V
Voltage type (operating voltage)
AC/DC
Type of switch contact
Single contact
Type of electric connection
Plug-in connection
Operating voltage at DC
- .. -V
With LED indication
Voltage type for actuating
DC
Material of contact surface
Other
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
3
Material contact
Silver nickel (AgNi)
Number of contacts as normally open contact
0
Degree of protection (IP)
IP40
Operating voltage at AC 60 Hz
250 .. 250V
Relay technology category according to IEC 61810-7
RT I
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
