Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Height80mm
Nominal current5A
With plug-in socketNo
Suitable for front mountingNo
Depth63mm
Width17.5mm
Function flashing, starting with pause, fixed timeNo
Remote operation possibleNo
With semiconductor outputNo
Clock function, starting with pause, variableNo
Function delay-on energizationNo
Function flashing, starting with pulse, fixed timeNo
Function floating contact on energizationNo
Function star-deltaNo
Clock function, starting with pulse, variableNo
Suitable as remote controlNo
Function delay on de-energizationYes
Time range0.05 - 360000s
Rated control supply voltage Us at DC24 - 48V
Number of outputs, undelayed, normally closed contact0
Function pulse shapingNo
Number of outputs, undelayed, normally open contact0
Number of outputs, delayed, normally closed contact0
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at AC 50HZ24 - 240V
Type of electric connectionScrew connection
Function floating contact on de-energizationNo
Number of outputs, undelayed, change-over contact2
Pluggable on auxiliary contact blockNo
Number of outputs, delayed, change-over contact2
Number of outputs, delayed, normally open contact0
Suitable for DIN rail (top hat rail) mountingYes
Voltage type for actuatingAC/DC
Outputs, reversible delayed/undelayedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

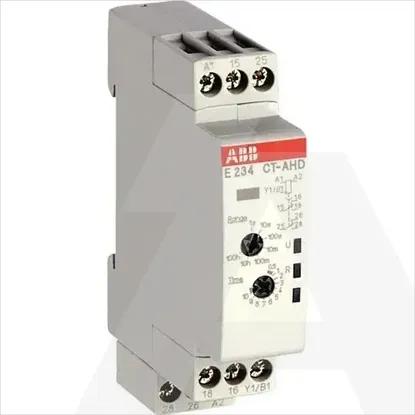

1SVR500110R0100 | CT-AHD.22
