Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Suitable for front mountingNo
Suitable as remote controlNo
Remote operation possibleNo
Height80mm
Width17.5mm
Nominal current5A
Depth63mm
Function flashing, starting with pause, fixed timeNo
With plug-in socketNo
Function flashing, starting with pulse, fixed timeNo
Rated control supply voltage Us at DC24 - 48V
Function pulse shapingNo
Type of electric connectionScrew connection
Time range0.05 - 600s
With semiconductor outputNo
Number of outputs, undelayed, normally open contact2
Function delay on de-energizationNo
Function star-deltaYes
Function floating contact on energizationNo
Function floating contact on de-energizationNo
Number of outputs, undelayed, change-over contact0
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 50HZ24 - 240V
Clock function, starting with pause, variableNo
Number of outputs, delayed, normally closed contact0
Rated control supply voltage Us at AC 60HZ24 - 240V
Function delay-on energizationNo
Clock function, starting with pulse, variableNo
Number of outputs, delayed, change-over contact0
Suitable for DIN rail (top hat rail) mountingYes
Number of outputs, delayed, normally open contact2
Voltage type for actuatingAC/DC
Pluggable on auxiliary contact blockNo
Outputs, reversible delayed/undelayedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

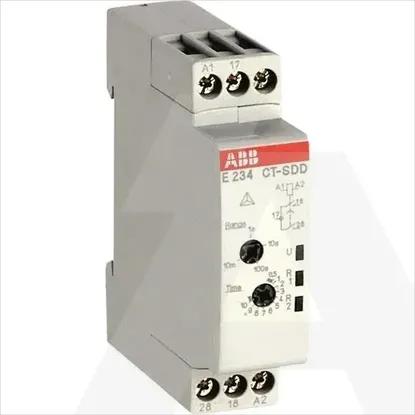

1SVR500211R0100 | CT-SDD.22
