Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Nominal voltage DC-V
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level L-N-kV
Category type 2Yes
Nominal voltage AC400V
Number of conductors (without earthing)3
Degree of protection (IP)IP20
Construction size3 modular spacing
Nominal discharge surge current (8/20)5kA
Signalling at the deviceOptic
Max. continuous voltage DC-V
Max. PV-voltage-V
With remote signalling contactYes
Max. continuous voltage AC275V
Voltage protection level N-PE-kV
System configuration TN-CYes
System configuration TNYes
System configuration ITNo
Max. conductor cross section flexible (fine-strand)16mm²
Max. conductor cross section solid (solid, stranded)25mm²
Voltage protection level0.9kV
Integrated backup fuseNo
System configuration DCNo
Max. overcurrent protection device, series connection (fuse)125A
Integrated short-circuit protectionNo
Short-circuit breaking capacity (Isccr)100kA
Leakage-current freeNo
System configuration TN-C-SNo
Max. discharge surge current (8/20)60kA
Integrated short-circuit protection selective to fuse gG-A
Max. overcurrent protection device, parallel connection (fuse)125A
System configuration TTNo
System configuration TN-SNo
System configuration otherNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

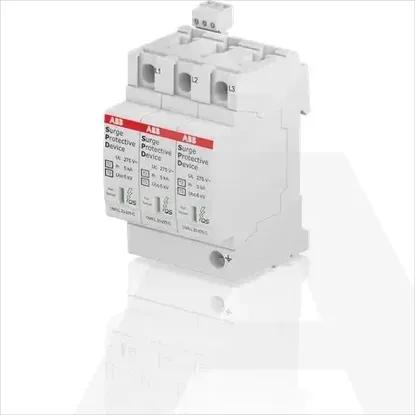

2CTB803873R3500 | OVR T2-T3 3L 20-275 P TS QS
