Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)20kA
Nominal voltage DC-V
Voltage protection level L-N-kV
Voltage protection level1.5kV
Construction size1 modular spacing
Max. PV-voltage-V
Integrated backup fuseNo
With remote signalling contactYes
Voltage protection level N-PE-kV
Degree of protection (IP)IP20
Signalling at the deviceOptic
Category type 2Yes
Mounting methodDIN rail (top hat rail) 35 mm
Max. continuous voltage DC-V
Nominal voltage AC230V
Max. continuous voltage AC350V
Max. conductor cross section solid (solid, stranded)25mm²
System configuration DCNo
System configuration TTNo
System configuration ITNo
System configuration TNNo
Max. conductor cross section flexible (fine-strand)16mm²
System configuration TN-SNo
System configuration TN-CNo
Short-circuit breaking capacity (Isccr)100kA
System configuration otherNo
System configuration TN-C-SNo
Max. discharge surge current (8/20)40kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

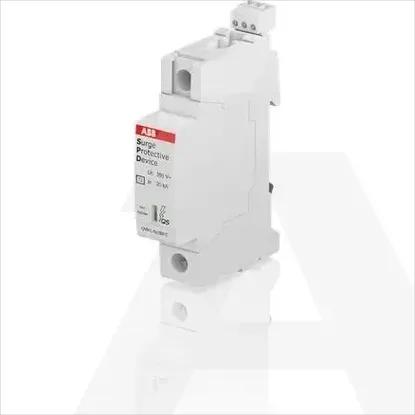

2CTB803881R1700 | OVR T2 40-350 P TS QS
