Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactYes
Number of conductors (without earthing)2
Construction size2 modular spacing
Voltage protection level L-N1.25kV
Voltage protection level1.5kV
Nominal voltage AC230V
Nominal discharge surge current (8/20)20kA
System configuration otherNo
Signalling at the deviceOptic
System configuration TN-CNo
Degree of protection (IP)IP20
Max. conductor cross section flexible (fine-strand)16mm²
System configuration ITNo
Nominal voltage DC-V
Max. conductor cross section solid (solid, stranded)25mm²
Max. PV-voltage-V
System configuration TN-SYes
Voltage protection level N-PE1.4kV
System configuration TNYes
Integrated backup fuseNo
System configuration TN-C-SYes
Category type 2Yes
System configuration TTYes
Max. continuous voltage DC-V
System configuration DCNo
Max. discharge surge current (8/20)80kA
Max. continuous voltage AC440V
Integrated short-circuit protectionNo
Max. overcurrent protection device, series connection (fuse)125A
Max. overcurrent protection device, parallel connection (fuse)125A
Leakage-current freeYes
Short-circuit breaking capacity (Isccr)100kA
Integrated short-circuit protection selective to fuse gG-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

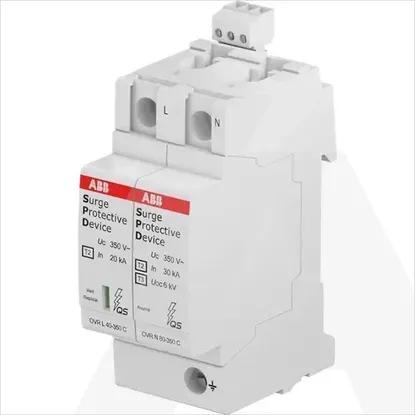

2CTB803972R1400 | OVR T2 1N 40-440 P TS QS
