Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Integrated backup fuseNo
Construction size1 modular spacing
With remote signalling contactNo
System configuration DCNo
Voltage protection level N-PE-kV
Max. continuous voltage AC440V
Voltage protection level L-N-kV
Signalling at the deviceOptic
Nominal voltage AC690V
Number of conductors (without earthing)1
Max. continuous voltage DC-V
Mounting methodDIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)30kA
Nominal voltage DC-V
Max. conductor cross section flexible (fine-strand)16mm²
Voltage protection level1.4kV
Max. PV-voltage-V
Max. conductor cross section solid (solid, stranded)25mm²
Category type 2Yes
System configuration ITNo
System configuration TNNo
System configuration TN-SNo
System configuration TN-CNo
Degree of protection (IP)IP20
Max. discharge surge current (8/20)80kA
System configuration otherNo
System configuration TTNo
System configuration TN-C-SNo
Short-circuit breaking capacity (Isccr)100kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

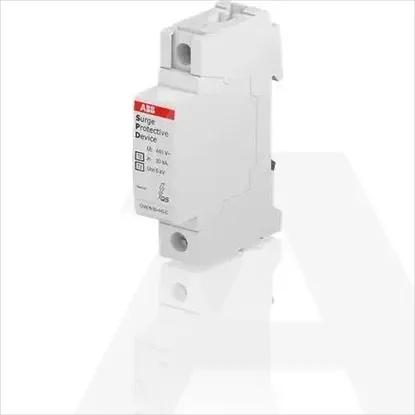

2CTB803973R2000 | OVR T2-T3 N 80-440 P QS
