Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Voltage protection level1.5kV
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactYes
Construction size2 modular spacing
Number of conductors (without earthing)2
Category type 2Yes
Max. continuous voltage DC-V
Nominal voltage AC230V
Signalling at the deviceOptic
Nominal voltage DC-V
Max. continuous voltage AC350V
Degree of protection (IP)IP20
Voltage protection level L-N1.25kV
Max. PV-voltage-V
Nominal discharge surge current (8/20)20kA
Max. conductor cross section flexible (fine-strand)16mm²
System configuration ITNo
Voltage protection level N-PE1.4kV
Max. conductor cross section solid (solid, stranded)25mm²
System configuration TTYes
System configuration TN-CNo
System configuration DCNo
System configuration TN-SYes
System configuration otherNo
Integrated backup fuseNo
System configuration TNYes
System configuration TN-C-SYes
Short-circuit breaking capacity (Isccr)100kA
Max. discharge surge current (8/20)80kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

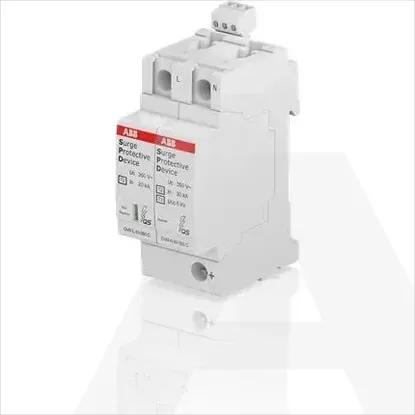

2CTB803982R0500 | OVR T2 1N 40-350 P TS QS
