Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Nominal discharge surge current (8/20)30kA
Degree of protection (IP)IP20
Max. continuous voltage DC-V
Voltage protection level N-PE-kV
Number of conductors (without earthing)1
Category type 2Yes
Nominal voltage DC-V
System configuration ITNo
System configuration DCNo
Nominal voltage AC400V
Construction size1 modular spacing
Max. conductor cross section solid (solid, stranded)25mm²
Max. conductor cross section flexible (fine-strand)16mm²
System configuration TN-SNo
Max. PV-voltage-V
With remote signalling contactNo
Integrated backup fuseNo
System configuration TNNo
Voltage protection level L-N-kV
System configuration TN-CNo
Max. continuous voltage AC350V
Signalling at the deviceOptic
Voltage protection level1.4kV
System configuration TTNo
Mounting methodDIN rail (top hat rail) 35 mm
System configuration TN-C-SNo
Max. discharge surge current (8/20)80kA
Short-circuit breaking capacity (Isccr)100kA
System configuration otherNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

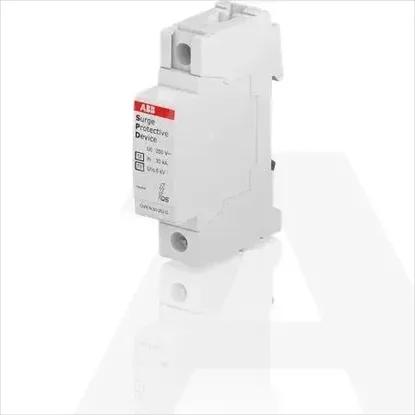

2CTB803983R1900 | OVR T2 N 80-350 P QS
