Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Nominal discharge surge current (8/20)30kA
Max. continuous voltage AC440V
Mounting methodDirect mounting
Category type 2Yes
Voltage protection level L-N1.4kV
Nominal voltage DC-V
Voltage protection level N-PE1.4kV
Signalling at the deviceNone
Nominal voltage AC400V
System configuration DCNo
Construction size1 modular spacing
Max. conductor cross section solid (solid, stranded)35mm²
Degree of protection (IP)IP20
Max. continuous voltage DC-V
Max. PV-voltage-V
System configuration TNYes
Max. conductor cross section flexible (fine-strand)25mm²
Number of conductors (without earthing)1
System configuration TN-CNo
Integrated backup fuseYes
With remote signalling contactNo
System configuration TN-SYes
System configuration ITNo
System configuration TTYes
Voltage protection level1.4kV
System configuration TN-C-SYes
Max. overcurrent protection device, series connection (fuse)160A
Leakage-current freeYes
Short-circuit breaking capacity (Isccr)100kA
Max. overcurrent protection device, parallel connection (fuse)160A
Integrated short-circuit protectionNo
System configuration otherNo
Integrated short-circuit protection selective to fuse gG-A
Max. discharge surge current (8/20)80kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

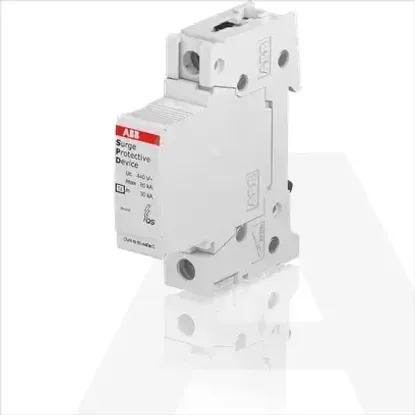

2CTB815708R5400 | OVR T2 N 80-440s P QS
