Details
- •Connection devices

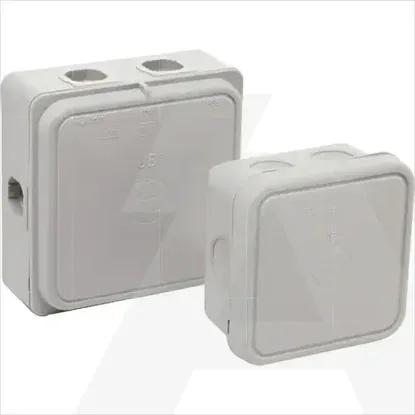

- •Terminal box
- •1 KOM
- •ABB
Technical specifications
Nominal voltage-V
ColourGrey
RAL-number-
Halogen freeYes
Extension possibleYes
Rated current-A
Mounting methodSurface mounted (plaster)
With transparent coverNo
Explosion-tested versionNo
Type of inletCable
Circuit integrityNone
Operating temperature-5 - 60°C
SealableYes
Cover attachmentScrewed
MaterialPlastic
With coverYes
Impact strengthIK04
Rated insulation voltage Ui-V
Number of inlets2
Maintenance free in accordance with BS 5733No
Compliant with BS 6220No
Degree of protection (NEMA)12
Material plate thickness cabinet-mm
For Ex-zone gasNone
For Ex-Zone dustNone
Surface protectionUntreated
Width90.5mm
Depth49mm
Number of connection clamps-
Length90.5mm
Max. conductor cross section2.5mm²
Degree of protection (IP)IP66
