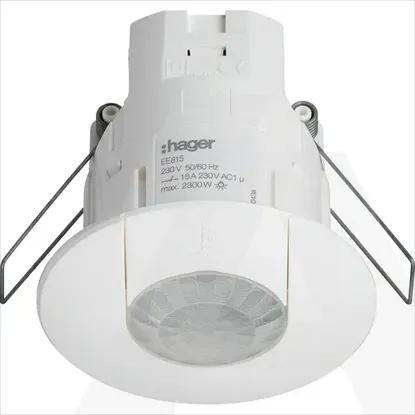

EE815
Code: 1930530
Details
- •Domestic switching devices
- •Movement sensor/presence detector complete
- •1 KOM
- •HAGER
Technical specifications
Diameter detection range on floor7m
ModelPresence detector
Sensor typePassive infrared
With DALI interfaceNo
Scan angle360°
HVAC-controlNo
Forced switch onNo
Staircase monitoringNo
Animal zoneNo
Forced switch offNo
Creep-under protectionNo
NetworkableYes
Optimum mounting height4m
Bridging switchNo
Constant light controlNo
Max. transmission range sideways6m
Max. presence range20m²
Response value sensitivity adjustableYes
Suitable for wireless transmissionNo
With remote controlYes
Remote operationYes
Max. transmission range frontally7m
Teach-function for response value luminosityYes
Suitable for ceiling mountingNo
Response value luminosity adjustableYes
Dim function with dimmer basic elementNo
Mounting methodFlush mounted (plaster)
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Halogen freeYes
Degree of protection (IP)IP41
With signal unitNo
RAL-number (similar)9001
Connection typeScrewed terminal
Impact strengthIK03
Voltage typeAC
Surface finishingMatt
Anti-bacterial treatmentNo
ColourWhite
Suitable for C-loadYes
Number of switching zones1
Max. starting current16A
Min. starting current0A
Substation inputYes
With acoustic sensorNo
Width80mm
Height75mm
Depth70mm
Diameter80mm
Built-in depth70mm
Built-in length0mm
Built-in width0mm
Built-in diameter68mm
Min. depth of built-in installation box75mm
Compatible with Apple HomeKitNo
With connection cableNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
IFTTT support availableNo
Nominal voltage230 - 230V
Max. duty cycle60min
Detection angle horizontal360 - 360°
Frequency50 - 60Hz
Min. switch-on time60s
Switch-off delay0s
Switching-on delay0s
Pivoting range sensor, horizontal360 - 360°
Max. switching power2300W
Max. switching power LED300W
Response value luminosity5 - 1000lx
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
