Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Degree of protection (IP)IP20
Release characteristicB
Rated current6A
Current limiting class3
Pollution degree2
Voltage typeAC
Rated voltage400V
Built-in depth70mm
Width in number of modular spacings1
Over voltage category3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Concurrently switching neutral conductorNo
Number of poles (total)1
Additional equipment possibleNo
Number of protected poles1
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

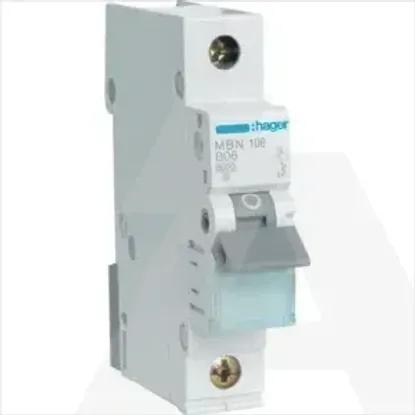

MBN106
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- HAGER
DetailsTechnical specificationsRelated products
Technical specifications
Degree of protection (IP)
IP20
Release characteristic
B
Rated current
6A
Current limiting class
3
Pollution degree
2
Voltage type
AC
Rated voltage
400V
Built-in depth
70mm
Width in number of modular spacings
1
Over voltage category
3
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Concurrently switching neutral conductor
Number of poles (total)
1
Additional equipment possible
Number of protected poles
1
