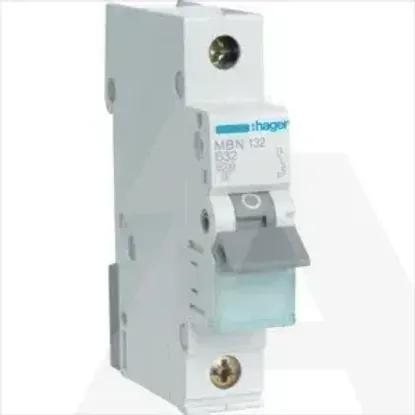

Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Additional equipment possibleNo
Frequency50 - 60Hz
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Pollution degree2
Voltage typeAC
Release characteristicB
Built-in depth5mm
Rated current32A
Rated voltage400V
Rated insulation voltage Ui400V
Current limiting class32
Over voltage category400
Number of protected poles1
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp400kV
