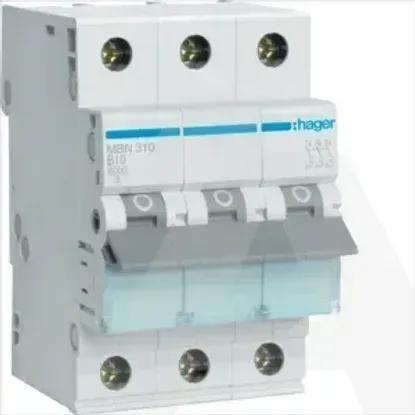

MBN310
Code: 1930929
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Degree of protection (IP)IP20
Voltage typeAC
Suitable for flush-mounted installationYes
Rated voltage400V
Rated current10A
Width in number of modular spacings3
Built-in depth70mm
Release characteristicB
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Over voltage category3
Number of poles (total)3
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Additional equipment possibleYes
Frequency50 - 60Hz
Pollution degree2
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
