Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •HAGER
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Release characteristicB
Additional equipment possibleYes
Pollution degree2
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Built-in depth25mm
Rated insulation voltage Ui400V
Current limiting class20
Over voltage category400
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp400kV
Number of poles (total)3
Rated current20A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated voltage400V
Concurrently switching neutral conductorNo
Width in number of modular spacings3
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

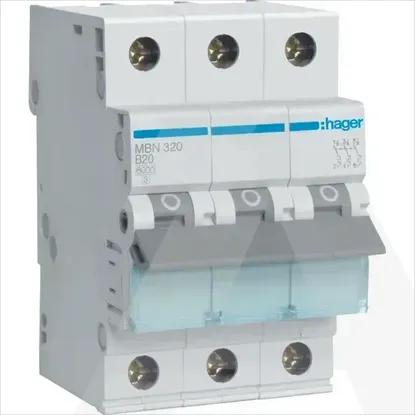

MBN320
