Details
- •Installation bus systems
- •Switch actuator for bus system
- •1 KOM
- •HAGER
Technical specifications
Rated operating voltage230 - 230V
Local operation/hand operationYes
Bus system PowernetNo
With bus connectionYes
Other bus systemsNone
Bus system LONNo
Max. number of switching contacts2
Number of digital inputs0
Suitable for C-loadNo
Rated current6A
Width in number of modular spacings0
Different phases connectableNo
With LED indicationYes
Max. switching power1200W
Bus system KNXYes
Max. switching current6A
Degree of protection (IP)IP20
Output power500W
Bus system radio frequentNo
Mounting methodFlush mounted (plaster)
Min. depth of built-in installation box40mm
Modular expandabilityNo
Bus system KNX radioNo
Radio frequent bidirectionalNo
Bus module detachableNo
Max. switching power LED26W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

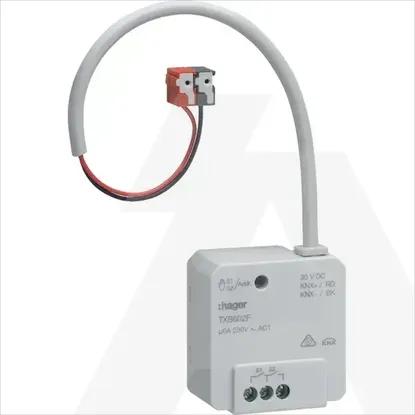

TXB602F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Installation bus systems
- Switch actuator for bus system
- 1 KOM
- HAGER
DetailsTechnical specifications
Technical specifications
Rated operating voltage
230 .. 230V
Local operation/hand operation
Bus system Powernet
With bus connection
Other bus systems
None
Bus system LON
Max. number of switching contacts
2
Number of digital inputs
0
Suitable for C-load
Rated current
6A
Width in number of modular spacings
0
Different phases connectable
With LED indication
Max. switching power
1200W
Bus system KNX
Max. switching current
6A
Degree of protection (IP)
IP20
Output power
500W
Bus system radio frequent
Mounting method
Flush mounted (plaster)
Min. depth of built-in installation box
40mm
Modular expandability
Bus system KNX radio
Radio frequent bidirectional
Bus module detachable
Max. switching power LED
26W
