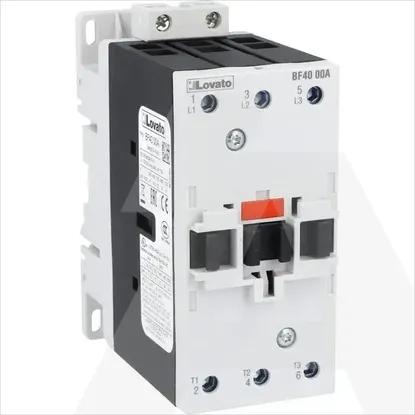

"BF4000A230 | SKLOPNIK BF40.00A 3P; 40A; 18.5kW;"
Code: 1935820
ManufacturerLovato
Catalog numberBF4000A230
TypePower contactor, AC switching
CategoryPower contactor, AC switching
EAN code8013975222805
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •LOVATO
Technical specifications
Rated operation current Ie at AC-1, 400 V70A
Modular versionNo
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Rated control supply voltage Us at AC 60HZ230 - 230V
Voltage type for actuatingAC
Type of electrical connection of main circuitFrame clamp
Rated control supply voltage Us at DC - V
Rated operation current Ie at AC-4, 400 V24A
Rated operation power at AC-3, 400 V18.5kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V40A
Rated control supply voltage Us at AC 50HZ230 - 230V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
"BF4000A230 | SKLOPNIK BF40.00A 3P; 40A; 18.5kW;"
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- LOVATO
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at AC-1, 400 V
70A
Modular version
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Voltage type for actuating
AC
Type of electrical connection of main circuit
Frame clamp
Rated control supply voltage Us at DC
.. V
Rated operation current Ie at AC-4, 400 V
24A
Rated operation power at AC-3, 400 V
18.5kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
40A
Rated control supply voltage Us at AC 50HZ
230 .. 230V
