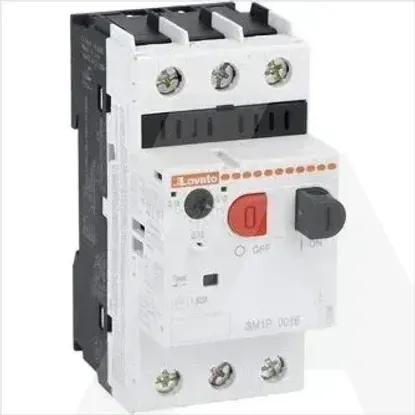

SM1P0160 | MOTORSKI ZAŠT. PREKIDAČ SM1P
Code: 1935821
ManufacturerLovato
Catalog numberSM1P0160
TypeMotor protection circuit-breaker
CategoryMotor protection circuit-breaker
EAN code8013975216156
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •LOVATO
Technical specifications
With integrated under voltage releaseNo
With integrated auxiliary switchNo
With thermal protectionYes
Type of control elementPush button
Adjustment range undelayed short-circuit release20.8 - 20.8A
Height97mm
Degree of protection (IP)IP20
Phase failure sensitiveYes
Type of electrical connection of main circuitScrew connection
Rated operating voltage0 - 690V
Width45mm
Depth75mm
Switch off techniqueThermomagnetic
Device constructionComplete device in housing
Rated permanent current Iu1.6A
Number of poles3
Overload release current setting1 - 1.6A
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
