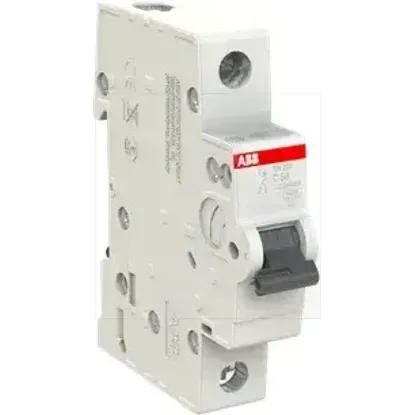

2CDS211001R0504 | SH201-C50
Code: 1937190
ManufacturerABB
Catalog number2CDS211001R0504
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779698993
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeAC
Current limiting class3
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Rated voltage230V
Pollution degree2
Width in number of modular spacings1
Over voltage category3
Explosion-proofNo
Degree of protection (IP)IP20
Power loss3.25W
Number of protected poles1
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 25mm²
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Additional equipment possibleNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 16mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Rated current50A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
