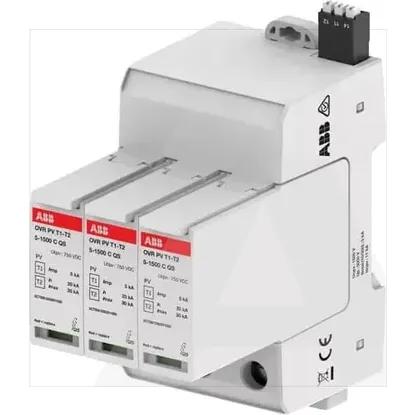

2CTB812051R1500 | OVR PV T1-T2 5-1500 P TS QS
Code: 1938071
ManufacturerABB
Catalog number2CTB812051R1500
TypeSurge protection device for power supply systems
EAN code4053546034653
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Construction size3 modular spacing
Max. continuous voltage AC1500V
Number of conductors (without earthing)2
With remote signalling contactYes
Voltage protection level5kV
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level L-N-kV
System configuration ITNo
Integrated backup fuseNo
Nominal voltage DC1500V
Category type 2Yes
Voltage protection level N-PE-kV
Max. PV-voltage1500V
Signalling at the deviceNone
System configuration DCYes
System configuration TNNo
Max. conductor cross section solid (solid, stranded)35mm²
Max. continuous voltage DC1500V
Max. conductor cross section flexible (fine-strand)25mm²
System configuration TN-CNo
Max. discharge surge current (8/20)40kA
System configuration otherNo
Short-circuit breaking capacity (Isccr)11kA
System configuration TN-C-SNo
System configuration TTNo
System configuration TN-SNo
Nominal discharge surge current (8/20)20kA
Nominal voltage AC-V
Degree of protection (IP)IP20
